MDOPE-E Film

MDOPE-E Film(High Barrier) provides High Oxygen Barrier along with grease, aroma, and mineral oil barriers. It utilizes the elasticity properties can serve in applications that require high barriers and excellent drop resistance.

TOPESOL’s MDOPE-E Film（High Barrier） features an Oxygen Transmission Rate (OTR) below 1 and enables high barrier mono-material PE structures. High-quality EVOH is used in this grade to add grease resistance, which is required for fatty applications like dry pet food or treats.

Matte/Glossy Finish
Excellent tensile strength
Excellent flatness and printability
Enables 100% Laminate Recycling
Outstanding fragrance preservation
WVTR<5 g/m2/24h
OTR<1 cc/m2·24h·0.1Mpa
AvailableThickness:25/40µm
Available Width: 500 ~ 2100mm
Fully Compliant with FDA and EU Food Contact Standards
Machinability – Suitable for Premade Pouches & V/HFFS Packaging Lines

*Unless otherwise stated, all performance is tested under standard laboratory condition: 23 ± 2 º C; 50 ± 5% RH.In relevant cases, testing is base on international testing standards.

Application

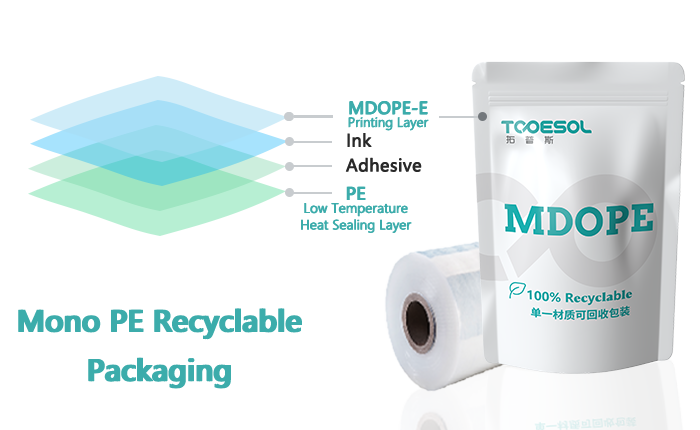

It’s used for printing layer of mono-material packaging.
It’s available for hot filling or pasteurization.
It’s suitable for ordinary dry goods and liquid packaging.
It can be used for packaging under room temperature or freezing condition.

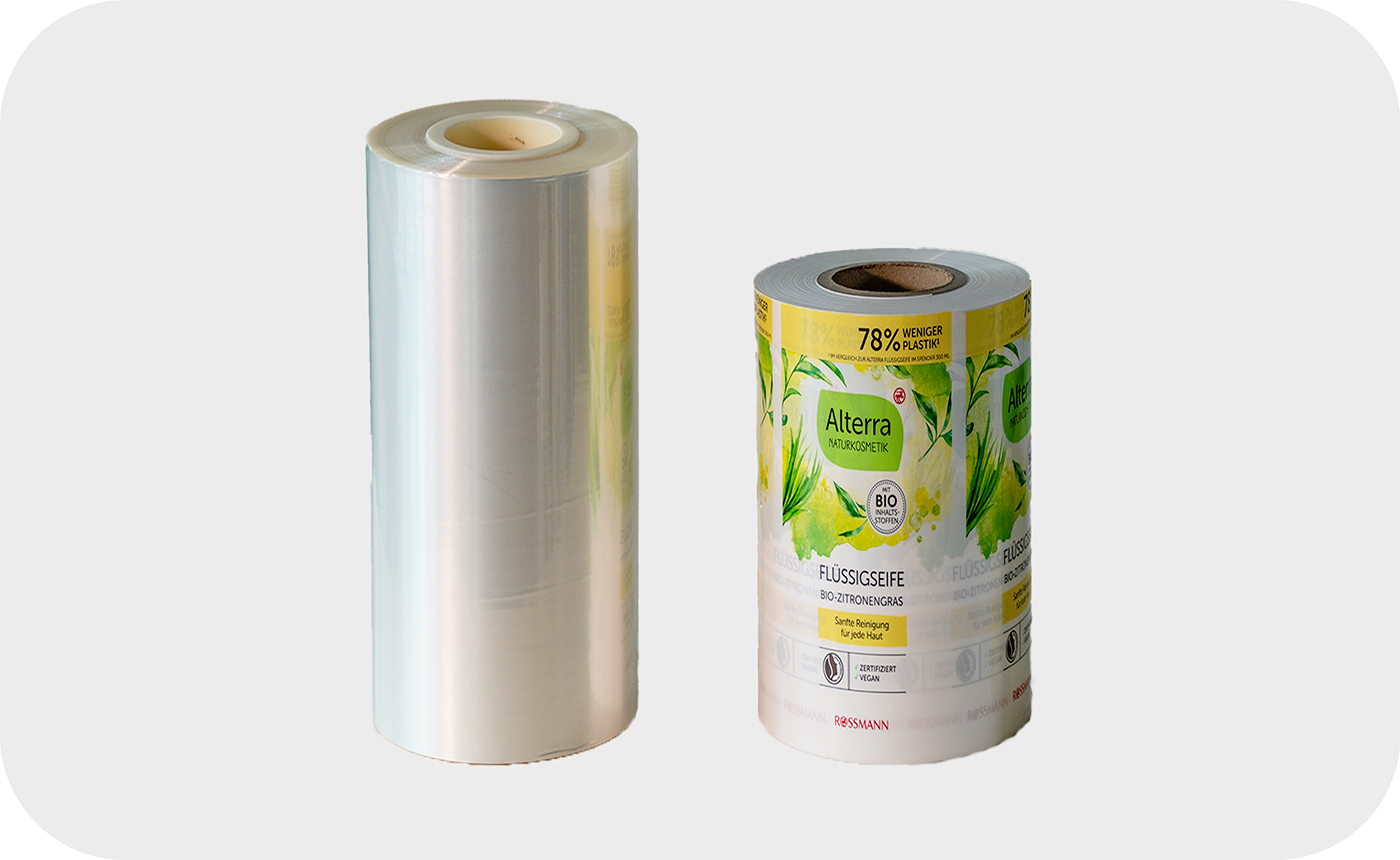

Product Photo

Product Feature

Excellent equipment & better effect of roll film

GOOD MECHANICAL PROPERTIES & PROCESSING PROPERTIES

TOPESOL’s MDOPE material has high tensile strength, excellent flatness and printability.It can maintain stable processing stability in subsequent coating, printing, laminating and pouch making process.

GOOD PRINTING PERFORMANCE

TOPESOL’s MDOPE material has good printing performance as PET, which can completely replace PET as the printing material of the surface layer, and is the best material for mono material recyclable packaging.

EXCELLENT OPTICAL PROPERTIES

TOPESOL’s MDOPE material can be tailored to meet specific requirements such as high transparency and gloss, low or high haze etc.

EXCELLENT BARRIER PERFORMANCE

TOPESOL’s MDOPE material provide good barrier performance to improve the poor barrier of ordinary recyclable packaging, and expand the application range of recyclable packaging.

SUSTAINABILITY

Enable the production with thinner film material while retaining the same barrier properties of thicker films, it means that require less materials, less packaging and less transportation costs, thus reducing CO²footprint, while retaining and improving film properties.

Production Flow

01. PREHEATING

Film enters the MDO stretching unit and is evenly preheated to a required temperature.

02. STRETCHING

03. ANNEALING

04. COOLING

Performance Comparison of Different Materials

Applicable Markets

Food

Seasoning

Pet Food

Related Products

COMMON MDOPE FILM

Common PE films perform high strength, high stiffness, heat resistance, easy tearing at MD and high transparency. It is suitable for the printing layer of mono PE packaging replacing PET.

Thickness：20-40um
Width：500-2200mm

HIGH BARRIER MDOPE FILM（THE FILM ITSELF HAS A HIGH BARRIER）

High barrier MDOPE has coating barrier layer or extrusion barrier layer, achieving excellent oxygen barrier and aroma preservation.

Thickness：20-40um
Width：500-2200mm

EXTREMELY HIGH BARRIER MDOFE FILM（INSTEAD OF ALUMINUM FOIL）

Extremely high barrier MDOPE film performs excellent water vapor barrier property. Special formula films enhance both oxygen barrier and aroma preservation. It is available for product packaging with higher requirement on shelf life.

Thickness：21-40um
Width：500-2200mm
